VTK笔记——vtk.js工程搭建

这篇笔记详细说明了vtk.js项目是如何搭建的,旨在快速入手工程搭建,享受web vtk的快乐人生。

一.环境

首先,我们需要安装js的运行环境Node.jsnpm
在这里插入图片描述
Node.js官网可以看到目前最新的版本是15.4.0,为了兼容,我们就选择推荐的14.15.1版本。
在Windows上安装需选择全部组件,包括Add to PATH.
安装完成后,可通过node -v命令查看结果:

$ node -v
v14.15.1

npm, node package manager, 即Node.js的包管理器。这个东西很强大,它在Node.js安装的时候就顺带安装好了,也可以通过npm -v命令查看:

$ npm -v
6.14.8

二.创建

Ok, 接下来我们来创建一个工程,看看它的结构如何。

1.创建工程主目录

$ mkdir MyVtkWebDemo

$ cd MyVtkWebDemo/

2.初始化

$ npm init
在这里插入图片描述

3.安装vtk.js及其依赖项

$ npm install vtk.js –save

可通过命令查看包详细信息:

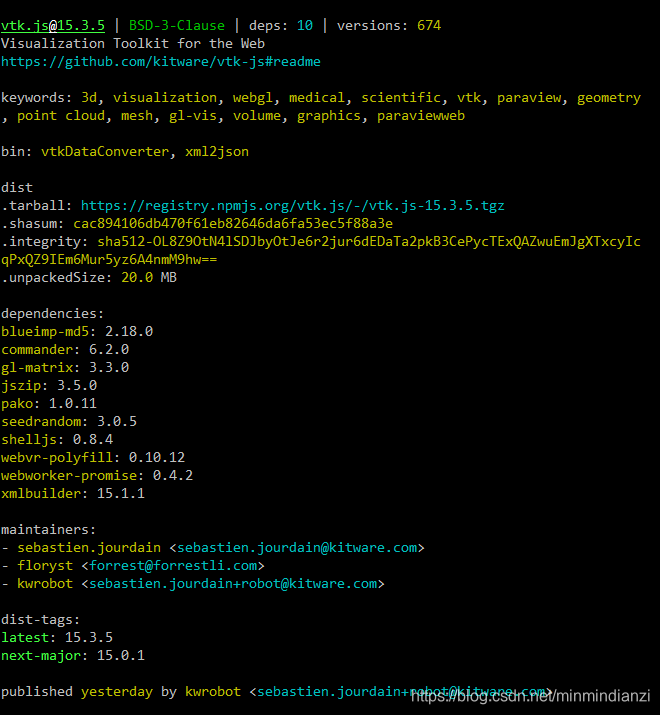

$ npm info vtk.js
在这里插入图片描述

4.安装和配置webpack

$ npm install –save-dev webpack

查看包信息:

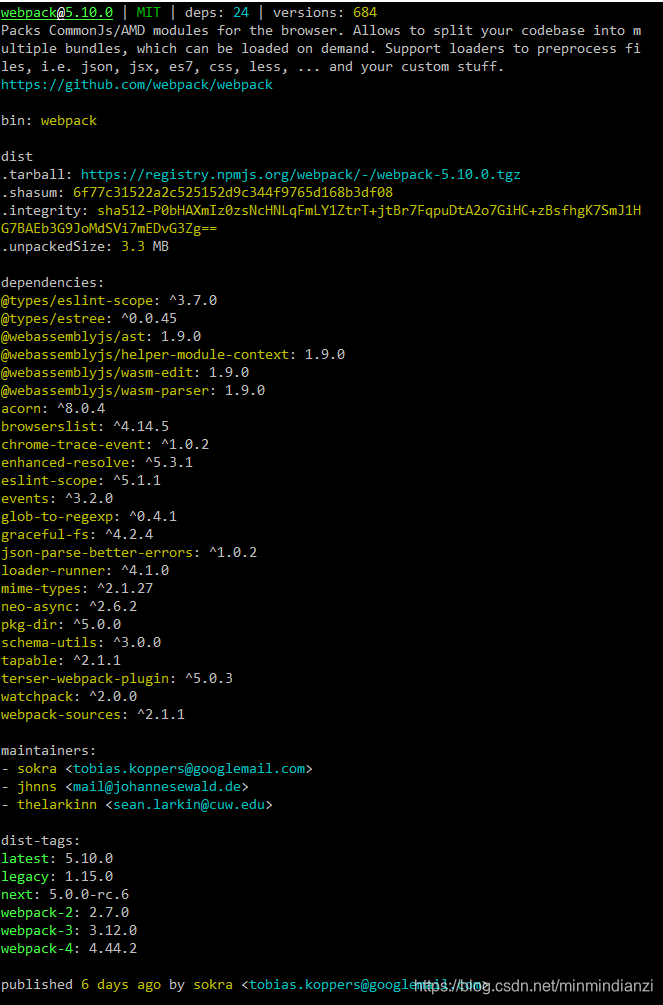

$ npm info webpack
在这里插入图片描述

从这里可以看出,webpack的版本为5.10.0,那还需要安装CLI

$ npm install –save-dev webpack-cli

5.新建./webpack.config.js

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
var path = require('path');
var webpack = require('webpack');
var vtkRules = require('vtk.js/Utilities/config/dependency.js').webpack.core.rules;

// Optional if you want to load *.css and *.module.css files
// var cssRules = require('vtk.js/Utilities/config/dependency.js').webpack.css.rules;

var entry = path.join(__dirname, './src/index.js');
const sourcePath = path.join(__dirname, './src');
const outputPath = path.join(__dirname, './dist');

module.exports = {
entry,
output: {
path: outputPath,
filename: 'MyWebApp.js',
},
module: {
rules: [
{ test: /\.html$/, loader: 'html-loader' },
].concat(vtkRules),
},
resolve: {
modules: [
path.resolve(__dirname, 'node_modules'),
sourcePath,
],
},
};

6.修改package.json

将scripts

1
2
3
"scripts": {
"test": "echo \"Error: no test specified\" && exit 1"
}

替换为

1
2
3
4
5
6
7
"scripts": {
"build": "webpack --config webpack.config.js",
"build:release": "webpack --progress --colors --mode production",
"start": "webpack serve --content-base ./dist",
"commit": "git cz",
"semantic-release": "semantic-release"
}

7.创建应用实例

./src/index.js

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72

import vtkFullScreenRenderWindow from 'vtk.js/Sources/Rendering/Misc/FullScreenRenderWindow';

import vtkActor from 'vtk.js/Sources/Rendering/Core/Actor';
import vtkCalculator from 'vtk.js/Sources/Filters/General/Calculator';
import vtkConeSource from 'vtk.js/Sources/Filters/Sources/ConeSource';
import vtkMapper from 'vtk.js/Sources/Rendering/Core/Mapper';
import { AttributeTypes } from 'vtk.js/Sources/Common/DataModel/DataSetAttributes/Constants';
import { FieldDataTypes } from 'vtk.js/Sources/Common/DataModel/DataSet/Constants';

import controlPanel from './controller.html';

// ----------------------------------------------------------------------------
// Standard rendering code setup
// ----------------------------------------------------------------------------

const fullScreenRenderer = vtkFullScreenRenderWindow.newInstance();
const renderer = fullScreenRenderer.getRenderer();
const renderWindow = fullScreenRenderer.getRenderWindow();

// ----------------------------------------------------------------------------
// Example code
// ----------------------------------------------------------------------------

const coneSource = vtkConeSource.newInstance({ height: 1.0 });
const filter = vtkCalculator.newInstance();

filter.setInputConnection(coneSource.getOutputPort());
filter.setFormula({
getArrays: inputDataSets => ({
input: [],
output: [
{ location: FieldDataTypes.CELL, name: 'Random', dataType: 'Float32Array', attribute: AttributeTypes.SCALARS },
],
}),
evaluate: (arraysIn, arraysOut) => {
const [scalars] = arraysOut.map(d => d.getData());
for (let i = 0; i < scalars.length; i++) {
scalars[i] = Math.random();
}
},
});

const mapper = vtkMapper.newInstance();
mapper.setInputConnection(filter.getOutputPort());

const actor = vtkActor.newInstance();
actor.setMapper(mapper);

renderer.addActor(actor);
renderer.resetCamera();
renderWindow.render();

// -----------------------------------------------------------
// UI control handling
// -----------------------------------------------------------

fullScreenRenderer.addController(controlPanel);
const representationSelector = document.querySelector('.representations');
const resolutionChange = document.querySelector('.resolution');

representationSelector.addEventListener('change', (e) => {
const newRepValue = Number(e.target.value);
actor.getProperty().setRepresentation(newRepValue);
renderWindow.render();
});

resolutionChange.addEventListener('input', (e) => {
const resolution = Number(e.target.value);
coneSource.setResolution(resolution);
renderWindow.render();
});

8.控制模板

./src/controller.html

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<table>
<tr>
<td>
<select class='representations' style="width: 100%">
<option value='0'>Points</option>
<option value='1'>Wireframe</option>
<option value='2' selected>Surface</option>
</select>
</td>
</tr>
<tr>
<td>
<input class='resolution' type='range' min='4' max='80' value='6' />
</td>
</tr>
</table>

9.用于加载生成的应用程序的主web页面

./dist/index.html

1
2
3
4
5
6
7
8
9
10
<!DOCTYPE html>
<html>
<head>
<meta http-equiv="Content-type" content="text/html; charset=utf-8"/>
<meta name="viewport" content="width=device-width, initial-scale=1">
</head>
<body>
<script type="text/javascript" src="MyWebApp.js"></script>
</body>
</html>

三. 编译

到这里,我们就可以编译工程了。

$ npm run build

看看./dist下面是否生成了应用文件。

$ ll dist/
在这里插入图片描述

四. 启动

最后,完事具备,只欠东风。

$ npm start

五.效果

有浏览器打开**http://localhost:8080/**,就可以看结果了。此时此刻,此情此景,你可以加个鸡腿了!
在这里插入图片描述

Ref

Using vtk.js as an ES6 dependency
